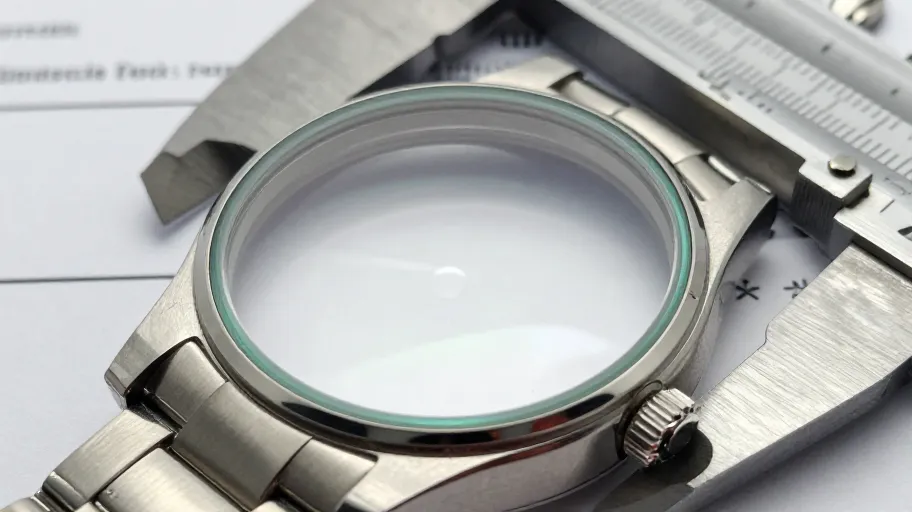

Specifying a custom sapphire watch crystal requires precise engineering data to ensure case compatibility and optical clarity. By defining geometry, coatings, and edge finishes upfront, procurement teams can reduce sampling iterations and accelerate production readiness. This guide outlines the critical parameters necessary for a accurate specification sheet.
For product developers and sourcing managers, the gap between a concept and a finished component lies in the details. A sapphire crystal is not merely a window; it is a structural, pressure-resistant, and optical element that must integrate seamlessly with the case, movement, and dial. To bridge the gap between design intent and manufacturing reality, we utilize the Geometry-Optics-Tolerance (GOT) Framework. This protocol ensures that every variable influencing form, fit, and function is documented before a quote is requested.
1. Geometry: Defining Shape and Dimensions
The first pillar of the GOT framework is Geometry. While the overall shape (round, square, tonneau) is usually defined by the case design, the specific dimensions of the crystal require careful calculation.
Outer Diameter (OD) and Inner Diameter (ID) The relationship between the crystal's OD and the case's inner diameter is critical for compression. The specification must account for the gasket type and the compression force required for water resistance. When specifying the OD, sourcing managers must verify if the measurement is a nominal size or a precise maximum material condition. Similarly, the ID must be clear regarding whether it refers to the clear aperture (the visible viewable area) or the total physical cut-out, which may be smaller if a step or bevel is present.
Thickness and Dome Profiles Flat crystals offer simpler manufacturing but limited aesthetic appeal. Domed crystals, including single-domed (bubble) and double-domed shapes, require specification of the Sagitta (height of the arc) or the radius of curvature.
- Flatness: For flat crystals, define the required flatness relative to the case back to ensure the movement has sufficient clearance.
- Dome Height: A higher dome magnifies the dial but increases the risk of impact. The specification should balance aesthetic magnification against the structural height available within the case.
It is essential to consult with the manufacturer regarding the minimum thickness required for a given diameter and dome height to maintain structural integrity under pressure.
2. Edge Configuration: Sealing and Aesthetics
The edge of the crystal is the primary interface with the watch case. An incorrectly specified edge can lead to assembly failures or compromised water resistance.
The Step vs. The Chamfer
- Stepped Edge: A vertical "step" ground into the side of the crystal allows the crystal to sit flush with a case back or a specific ledge. This is common in dive watches where the crystal is fitted from the inside or requires a specific seat.
- Chamfer/Bevel: An angled cut on the top or bottom edge. This is often decorative but can also serve to guide a gasket or facilitate installation into a tapered case opening.
Gasket Seat If the watch uses a rubber or Teflon gasket, the crystal specification must indicate the surface finish of the area where the gasket sits. A polished surface may cause the gasket to slip, whereas a frosted or sanded edge provides friction to hold the gasket in place during assembly. The drawing must clearly indicate which vertical surface acts as the sealing surface.
3. Optical and Surface Requirements
The second pillar of the GOT framework is Optics. Sapphire is valued for its clarity, but raw sapphire reflects a significant percentage of light.
Anti-Reflective (AR) Coatings When specifying AR coatings, distinguish between:
- External Coating: Applied to the top surface. Reduces glare but is susceptible to scratches.
- Internal Coating: Applied to the bottom surface. Protected by the sapphire substrate, reducing glare without scratch risk.
- Double-sided Coating: Maximum clarity reduction but requires careful handling during assembly.
Specify the desired color of the coating (e.g., blue, green, or clear) and the number of layers. Note that different manufacturers may use proprietary indices, so it is best to provide a reference sample or a specific refractive index requirement if color matching is critical.
Transparency and Inclusions For standard watches, optical clarity is generally expected. However, for high-end or transparent case backs, the specification should address acceptable levels of bubbles, inclusions, or striations. While premium material minimizes these, defining the visual standard helps the supplier select the appropriate raw sapphire boule grade.
4. Tolerances and Quality Control
The final pillar is Tolerance. As a buyer, you must determine the precision required for your assembly without over-specifying, which can drive up costs unnecessarily.
Dimensional Tolerances The allowable deviation in diameter, thickness, and radius must be defined based on the case assembly method. A press-fit crystal may require tighter diameter tolerances than a glue-fit crystal. Instead of asking for a generic "high precision," provide a specific tolerance range for the OD that aligns with your gasket compression calculations. Ask the supplier: "What is your standard process capability for this diameter, and what cost premium is associated with tighter control?"
Surface Quality and Parallelism Specify the surface quality standards (e.g., scratch-dig standards) relevant to your market segment. Additionally, for flat crystals, parallelism—the variation in thickness across the part—is crucial. If the crystal is not parallel, the gap between the crystal and the dial may vary, causing visual distortion or interference with the hands.
Decision Framework: Standard vs. High-Specification Scenarios
| Feature Variable | Standard Scenario | High-Specification Scenario |
|---|---|---|
| Shape | Flat or simple single dome. | Complex double dome or asymmetrical shapes. |
| Edge Finish | Simple chamfer; polished sides. | Precision step for gasket seat; frosted sealing surface. |
| Coating | Single-side internal AR. | Double-side multi-layer AR with specific color temperature. |
| Tolerance | Standard commercial tolerance. | Tight tolerance for press-fit or exposed bezel assemblies. |
| Material Grade | Standard optical sapphire. | Bubble-free, high-transmissivity grade. |
Supplier Approval Questions
Before moving to production, verify the manufacturer's understanding of your specification by asking these approval questions:
- Does the quoted price include the specific edge finish (step/chamfer) and coating type requested?
- Can you provide a measurement report on the first article to verify the OD/ID and thickness against my tolerances?
- How do you verify the adhesion and hardness of the AR coating prior to shipment?
- What tooling or setup fees apply to this specific geometry, and are they one-time or recurring?
Frequently Asked Questions (FAQ)
What is the difference between a sapphire crystal and a mineral crystal in terms of specification? While material hardness differs, the primary difference in specification is often thickness. Sapphire is harder and more brittle, often requiring slightly different edge profiles to prevent chipping during installation compared to mineral glass.
Can I specify a custom shape other than round? Yes, custom shapes (Reuleaux triangles, cushions, squares) are producible. However, internal corner radii must be specified. Sharp internal corners are difficult to polish; specifying a minimum corner radius is necessary for manufacturability.
How should I specify the thickness for a dome crystal? You must specify both the edge thickness (at the mounting point) and the center thickness (the apex of the dome). These two values will differ, and both are critical for case depth and movement clearance.
Is it necessary to specify the "orientation" of the coating? Yes. If you have a specific requirement for which side the coating is on (e.g., internal only), this must be explicitly marked on the drawing, as double-sided coating is sometimes the default process for some manufacturers.
How do I specify the "bubbles" or imperfections allowable in the crystal? Refer to optical standards such as scratch-dig specifications. Simply stating "no bubbles" may lead to higher costs or rejection of usable parts. Defining a maximum allowable size and quantity of inclusions per square centimeter provides a clear quality standard.
