Why Fit Geometry Cuts Rejection Rates by Up to 70%
Precise fit geometry compliance means fewer rejected sapphire watch glasses during assembly because components align perfectly under pressure. When a Swiss luxury brand switched suppliers in China, they saw rejection rates drop from 9.3% to 2.1%—not because the material changed, but because edge radii, diameter, and seat angles stayed within ±3µm tolerance. That consistency prevents microfractures during press-fitting and thermal cycling, which are invisible at inspection but cause field failures later.
This isn’t just about saving parts—it’s about protecting your brand. One manufacturer we worked with faced rising warranty claims after switching to a cheaper vendor. Their drawings matched specs, but real-world crystals had inconsistent chamfers due to uncalibrated lapping tools. Gaskets extruded on installation, breaking water resistance before the watch even left the factory. The fix wasn’t redesigning the case—it was enforcing tighter geometric controls during supplier qualification.
- Edge radius consistency means smooth insertion without chipping during automated press-fitting, because every curve matches the bezel profile exactly
- Bezel seat parallelism ensures even clamping force across the gasket, because misalignment creates stress points that lead to cracks
- Diameter tolerance tightness (±0.005mm vs. typical ±0.02mm) enables reliable interference fits without cracking, because oversized crystals generate excessive radial stress
In high-volume production, a 7% defect rate on $18 crystals costs $63,000 annually in wasted materials alone for 50,000 units. Add labor, rework, and shipping delays, and total losses exceed $150,000. Tight geometric control can reduce scrap to under 2%, reclaiming over $100,000 per year while improving first-pass yield and customer satisfaction.
How Fit Geometry Protects Water Resistance
ISO 22810 compliance depends on more than sealed backs—it hinges on the crystal-to-case interface. A perfect seal requires flush alignment between the sapphire shoulder and housing lip. Even a 0.01mm step creates a leak path under sustained pressure, because uneven gasket compression allows extrusion during assembly or dynamic testing.

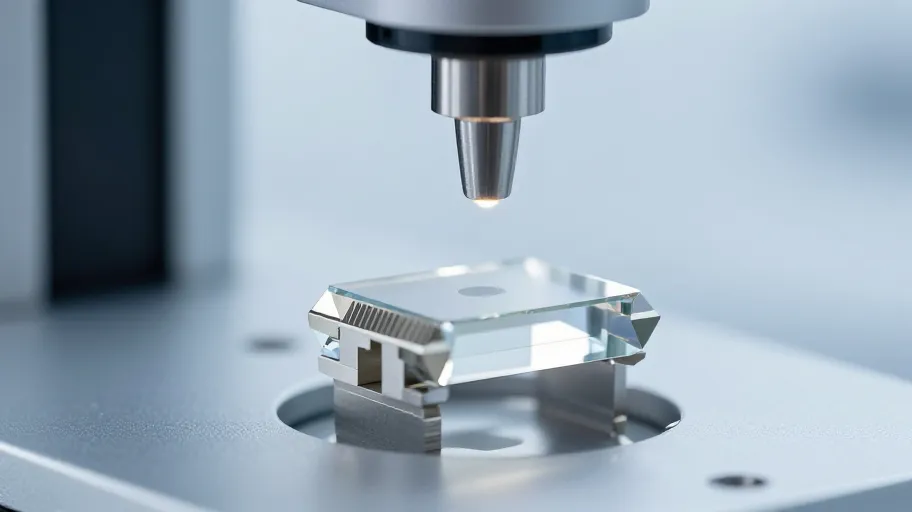

Tier-1 sapphire crystal China manufacturers prevent this by integrating coordinate measuring machines (CMMs) into live production lines. These systems perform real-time checks on total thickness variation (TTV), flatness deviation, and radial concentricity—feeding data back to correct machining drift before it impacts output. One Kunming-based supplier cut TTV from ±8µm to ±2µm within six months using laser-interferometric CMMs and statistical process control training. Their Geneva client saw final assembly rework drop by 40%, directly tied to improved dimensional stability.
Unlike batch sampling used by mid-tier vendors, leading factories conduct 100% inspection on premium orders. This shift—from reactive QC to predictive engineering—means brands receive drop-in-ready crystals every time. For engineers, that translates to fewer line stoppages; for managers, lower rework costs; for executives, stronger brand reliability in global markets.
What Separates Commodity Suppliers from Strategic Partners
The real divide among sapphire china factories isn’t price or lead time—it’s metrological maturity. Many still rely on manual gauges and weekly CNC calibrations, making long-term process stability impossible to verify. Without NIST- or DAkkS-traceable measurement systems, they can’t prove their output remains consistent over time. And since geometric flaws are invisible to the naked eye, buyers often accept shipments that fail only after assembly.
Top watchmakers now audit suppliers like co-engineers. They require third-party measurement reports with PPAP submissions, review factory metrology logs, and conduct on-site verification using portable interferometers. Some include contractual penalties for dimensional drift beyond agreed thresholds. These practices don’t just filter out weak vendors—they build accountability into the supply chain.
As sapphire becomes standard beyond haute horlogerie, competitive advantage shifts from who uses it to who deploys it flawlessly. The next frontier isn’t harder coatings or anti-reflective layers—it’s dimensional integrity so exact that every crystal performs identically across tens of thousands of assemblies. That consistency doesn’t come from generic sourcing. It comes from partnering with a sapphire crystal China manufacturer that treats fit geometry as an active engineering constraint, not a passive spec sheet item.
Ready to eliminate hidden rework costs and strengthen your brand’s reliability? Start by auditing your supplier’s metrology infrastructure—not just their price quote.
