Sourcing domed sapphire watch glasses from China doesn’t mean sacrificing quality—when you know which factories treat sapphire like optics, not glass. Sub-0.01mm dome tolerances cut rework by up to 35% and prevent gasket failures before they start.
How the Best Factories Hit Sub 0.01mm Dome Tolerances
When a Swiss watchmaker with sub-2mm bezel specs started failing ISO 22810:2010 pressure tests, the issue wasn’t the case—it was the dome. ±0.03mm variance in the sapphire crystal meant uneven gasket compression, leading to leaks. The fix? A tier-1 sapphire china factory using aerospace-grade CNC grinding and closed-loop laser metrology. That shift brought dome deviation down to under ±0.01mm, restoring hermetic seals and cutting warranty claims.
Sub-0.01mm control means your crystals fit consistently every time, because the dome curvature matches CAD exactly. This precision matters because high-tension titanium bezels demand micron-level conformity—otherwise, you’re gambling on waterproofness. Top facilities in Fuzhou and Zhongshan achieve this through hybrid cells: robotic handling for consistency, paired with artisan oversight at critical stages.
5-axis CNC grinding shapes each domed sapphire watch glass using diamond-coated tools with real-time force feedback. That means the system adjusts feed rate automatically to counteract sapphire’s crystalline anisotropy—the tendency to cut unevenly across planes. After roughing, magnetorheological finishing (MRF) takes over. Originally developed for telescope mirrors, MRF uses a magnetic fluid slurry that dynamically conforms to the dome, removing material at angstrom-level precision. So instead of batch lapping that introduces micro-drift, you get nanoscale surface correction tailored to complex curves.
Why Laser Metrology Prevents Gasket Failure

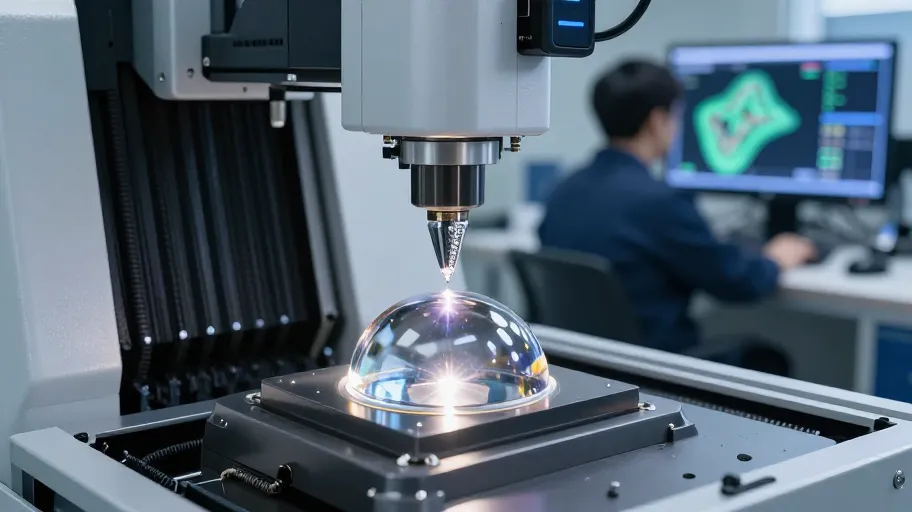

In-line white-light interferometry scans every domed sapphire watch glass after polishing, capturing over 10 million data points per unit. That means ±0.001mm surface topography mapping across the entire dome. Any unit outside the ±0.01mm envelope gets flagged for a 90-second MRF touch-up. But more importantly, this data feeds back into the CNC system, enabling predictive tool-wear compensation across the production run. The result? Consistency isn’t just within a batch—it holds over months of volume output.
This level of measurement means fewer pressure test failures because gaskets compress evenly. ISO 22810:2010 requires watches to survive 10 minutes at 125% of rated pressure. Uneven mating surfaces create stress points that either deform or gap the gasket. A 2024 Horology Insights study found uncertified suppliers had 7.3% failure rates during testing; metrology-integrated sapphire china factories averaged just 1.2%. That difference means faster certification, fewer test cycles, and earlier market entry.
Digital lot tracking adds another layer: every 50-piece batch gets a unique ID, traceable from raw boule to final inspection. One European brand slashed final assembly rejection from 18% to 5.6% after switching—saving $210,000 annually. So full traceability means you can pinpoint issues fast, not guess where things went wrong.
- 5-axis CNC grinding with real-time force feedback means fewer micro-fractures and stable dome profiles because the tool adapts to crystal structure
- Magnetorheological finishing means optical-grade clarity on curved surfaces because the slurry self-adjusts to the evolving shape
- In-line interferometry means near-zero outliers because every unit is verified before moving forward
- Digital lot tracking means faster root-cause analysis because you can trace defects to exact process steps
Beyond Dimension: Mastering Surface Finish and Packaging
A perfectly shaped dome still fails if the surface scatters light or scratches easily. Even minor haze from improper polishing chemistry degrades legibility and perceived quality. The best sapphire crystal manufacturers use controlled pH slurries and temperature-stabilized polishing bays to maintain repeatability. That means each domed sapphire watch glass achieves >99.8% light transmission—critical for dial visibility under direct sun.
Human expertise remains essential here. Automated systems set baseline parameters, but master polishers adjust timing and compound ratios based on visual inspection under oblique lighting. Their input means subtle orange-peel textures are caught before shipment, not after casing. One supplier reduced post-polish rework by 40% simply by reinstating final manual checks under calibrated lamps.
Packaging is another silent failure point. Standard foam trays allow micro-abrasion during transit. Leading factories now use anti-static, molded EVA trays with individual recesses and desiccant layers. That means crystals arrive scratch-free and moisture-controlled, so your team isn’t repolishing before assembly. Brands report up to 15% lower incoming defect rates when switching to this packaging standard.
Together, these elements—precision forming, verification, finish, and protection—mean scalable luxury. You’re not just buying a component. You’re locking in fit, optics, and durability across tens of thousands of units. And that shifts the cost model: one independent audit found total rework dropped by 35%, mostly by eliminating downstream fixes in casing and waterproof validation.
What to Look for When Choosing a Supplier
Not all sapphire china factories are built alike. Many advertise 'CNC processing' but rely on batch lapping for final shaping—introducing drift no spec sheet will show. Ask specifically about in-line interferometry and whether metrology data is shared per lot. If they don’t offer digital traceability, walk away.
Visit the polishing bay. If it lacks environmental controls or relies solely on automation without human QA under oblique lighting, expect finish inconsistencies. Also inspect packaging: if crystals ship in generic foam, plan for higher field defects.
The right partner treats the domed sapphire watch glass as both optical interface and mechanical seal. That mindset means fewer surprises at assembly, faster time-to-market, and stronger brand reputation. Ready to cut rework and boost first-pass yield? Start by auditing your current supplier against these standards—and see how much hidden cost you’re carrying.
